MegaDrum kit

I  understand you may not like the look of the complete modules I build or you may have a specific case/enclosure requirement for MegaDrum so I offer here 3 different fully soldereded 56 inputs MegaDrum kits.

  1. Full MegaDrum kit.
  2. Basic MegaDrum kit.
  3. Minimal MegaDrum kit.
  4. Standard Lite MegaDrum kit.
  5. Minimal Lite MegaDrum kit.

The Full and Basic kits only need an enclosure and input jacks to be added. The Mininimal kit will require at least buttons, a USB socket and input jacks to be added. For board pinput and description see MegaDrum kit instruction manual.

For kits cost and shipping options see 56 inputs MegaDrum kit and MegaDrum Lite kit topics in the MegaDrum forum. If you are interested in one of the kits, please send a message to dmitri.skachkov at megadrum dot info



The Full kit includes:

  • Fully soldered and programmed with protected bootloader MegaDrum main board with either Atmega1284 or Atmega644 at 20MHz.
  • 16x2 LCD with a soldered cable and a board connector.
  • Fully soldered controls mini board with rotary encoders, buttons, cables and board connectors.
  • USB socket with a soldered cable and a board connector.
  • DIN5 MIDI In and MIDI Out sockets with a soldered cable and a board connector.
  • Mini power switch with a soldered cable and a board connector.
  • MIDI activity LED with a soldered cable and a board connector.
  • 40way 30cm pads inputs cable with an IDC 2x20 board connector.
  • 20way 30cm pads inputs cable with an IDC 2x10 board connector.

full kit



The Basic kit includes:

  • Fully soldered and programmed with protected bootloader MegaDrum main board with either Atmega1284 or Atmega644 at 20MHz.
  • 16x2 LCD with a soldered cable and a board connector.
  • USB socket with a soldered cable and a board connector.
  • Mini power switch with a soldered cable and a board connector.
  • MIDI activity LED with a soldered cable and a board connector.
  • One IDC 2x20 male connector.
  • One IDC 2x10 male connector.
  • 4 buttons, 2 1n4148 diodes, 4way flat cable and 4way connector.

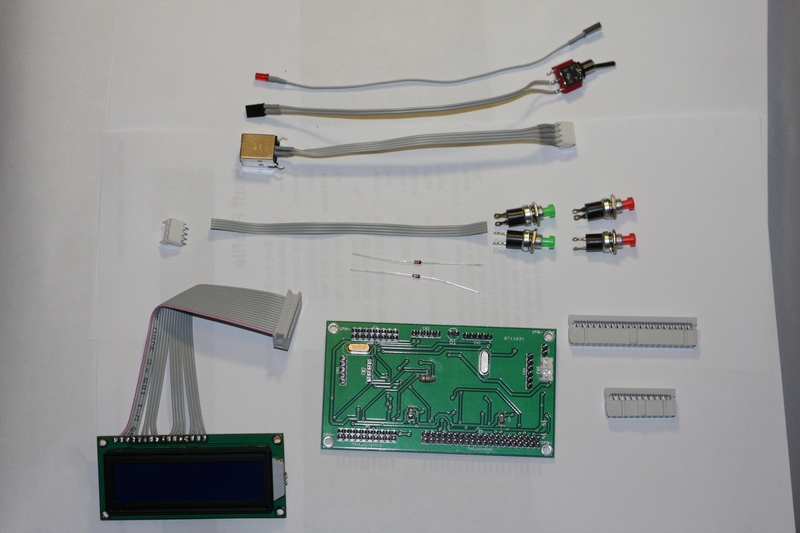

basic kit



The Minimal kit includes:

  • Fully soldered and programmed with protected bootloader MegaDrum main board with either Atmega1284 or Atmega644 at 20MHz.

minimal kit



The Full kit assembled powered up without a case and input jacks:
